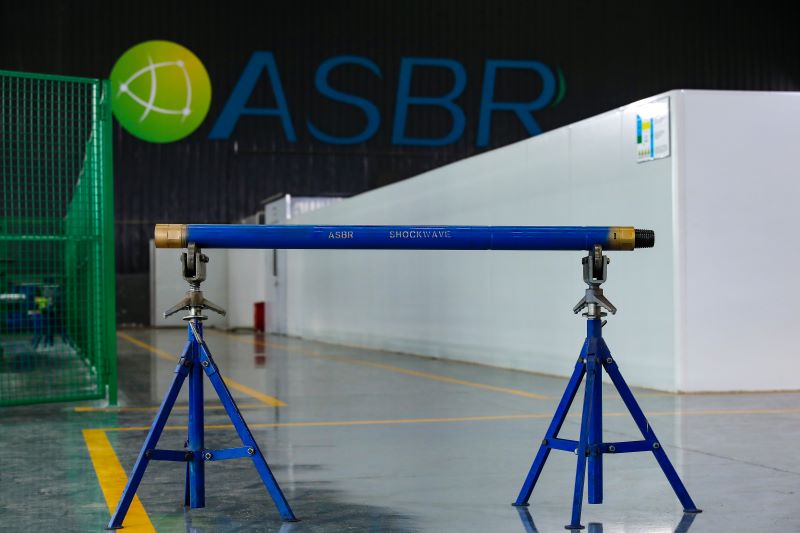

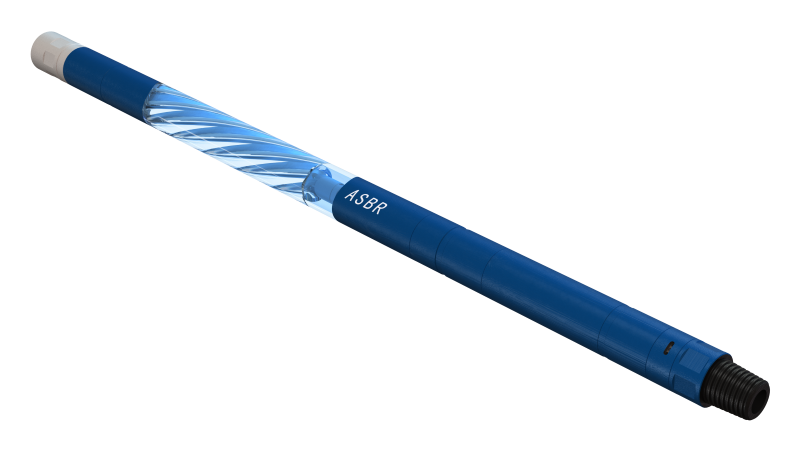

Coiled Tubing Shockwave? Extended Reach Tool

The Coiled Tubing Shockwave? hydraulic oscillator is a coiled tubing extended reach tool that produces both axial and radial oscillations during operation. The low-frequency oscillation gives the oscillation force more time to act on the coiled tubing, which is more effective in reducing frictional resistance. The bypass jetting of the tool allows the tool to have a lower pressure drop.

· Work can be started with a small flow rate

· It has both axial and radial oscillating forces

· More flow rate, lower pressure drop

· The low flow rate of vibration gives the oscillating force more time to act on the coiled tubing

* All-metal versions can be customized

OD(in)	Length(mm)	Flow Rate(L/min)	Maximum Operating Temp(℃)	Vibration Frequency(Hz)	Connection
1 11/16	1380	80-200	190	6-14	1 AMT
2 1/8	1410	80-220	190	5-14	1 1/2 AMT
2 3/8	1450	80-350	190	3-14	1 1/2 AMT
2 7/8	1490	80-560	190	2-14	2 3/8 PAC
3 1/8	1580	100-700	190	2-14	2 3/8 PAC
