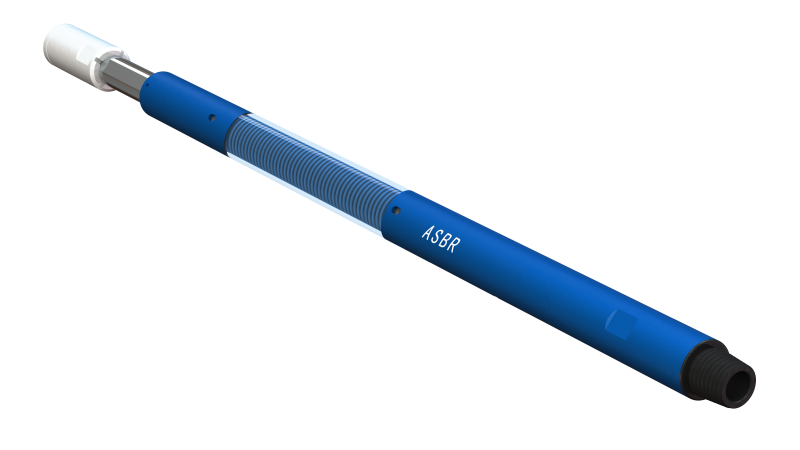

ASBR accelerator is a type that enhances the up and down impact force of a jar or impact hammer. Disc springs in the accelerator store the compression or tension energy generated when the coiled tubing is compressed or raised. When the jar or impact hammer is activated, this energy is released rapidly to increase the impact force.
| OD(in) | ID(mm) | Length(mm) | Stroke(mm) | Tensile Strength(kN) | Torsion Strength(Nm) | Connection |
| 2 1/8 | 18 | 1110 | 100 | 329 | 1330 | 1 1/2 AMT |
| 2 3/8 | 18 | 1250 | 100 | 446 | 2080 | 1 1/2 AMT |
| 2 7/8 | 22.3 | 1460 | 150 | 533 | 2980 | 2 3/8 PAC |
