CT Dimple Connector

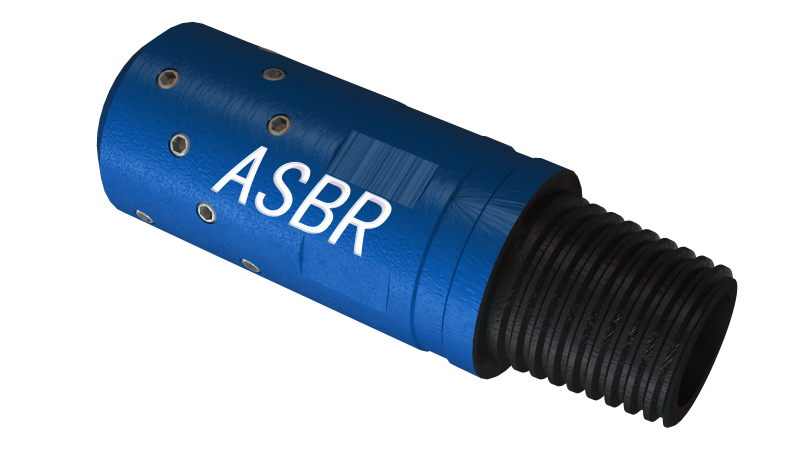

CT Dimple Connector is used to connect coiled tubing and BHA. During installation, the welds and burrs at the tail end of coiled tubing are removed in advance, and pits are made on the coiled tubing with pitting tools. The tubing is inserted into the inner hole of the tool and the pins are tightened. In downhole motor drilling, shock and other vibration operations, this kind of connector is an ideal connector. It can provide comprehensive performance of high strength, high pressure and high torque resistance at the same time.



Technical characteristics:

1. Higher torsional strength;

2. Higher tensile strength;

3. Good sealing performance;

4. Connecting and unloading are very simple and easy.

CT OD(in)	Tool OD(in)	Tool ID(in)	Length(mm)	Working Pressure(MPa)	Tensile Strength(lb)	Torsional Strength(ft-lb)	Connection Type
1 1/2	2 1/8	1	165.1	70.0	63,710	1,236.2	1 1/2" AMM
1 3/4	2 7/8	1 1/4	190.5	70.0	140,010	3,198.1	2 3/8” PAC
2	2 7/8	1 1/2	203.2	70.0	97,657	2,415.4	2 3/8” PAC
2 3/8	3 1/8	1 1/2	215.9	70.0	124,994	2,998.2	2 3/8” PAC

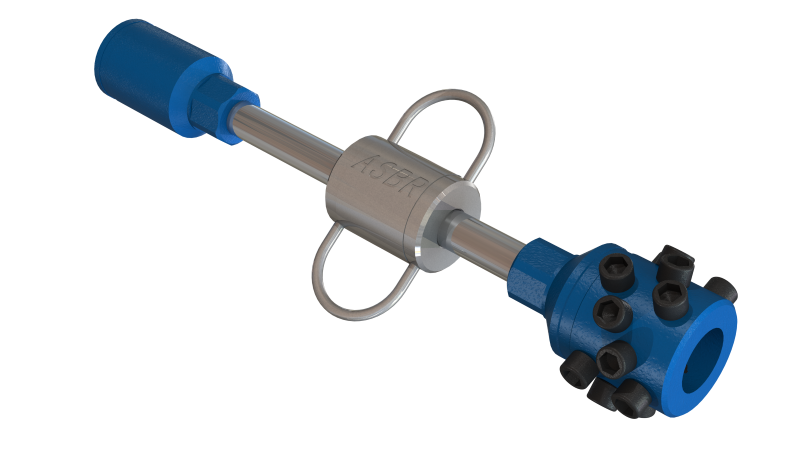

Compact?CT Dimple Connector needs to be used in conjunction with the pit-making tool. The bolts on the pit-making tool extrude the coiled tubing to make pits in the same position as the pins on the connector. The pit-making tool is equipped with hammer to facilitate the loading and dismantling of coiled tubing.





Technical characteristics:

It is easy to install on site; it has many sizes and configurations for coiled tubing; its design is strong and maintenance-free; the integrated mobile hammer handle helps the installation and disassembly of coiled tubing; other sizes and connection types can be provided as required.



CT OD(in)	Tool OD(in)	Tensile Strength(lb)	Connection Type
1 1/2	3 7/8	124,994	1 1/2” AMMT Box × Pin
1 3/4	3 7/8	124,994	2 3/8” PAC × Box
2	4	124,994	2 3/8” PAC × Box
2 3/8	4	124,994	2 3/8” PAC × Box
